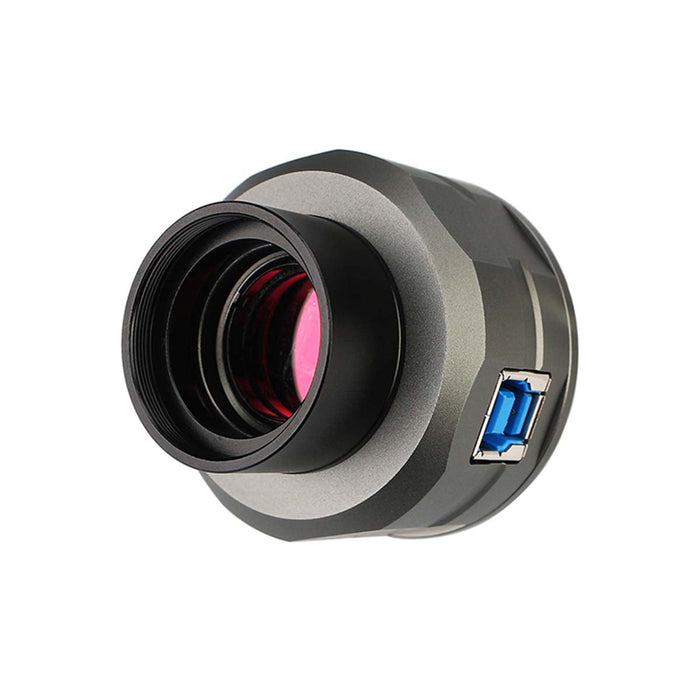

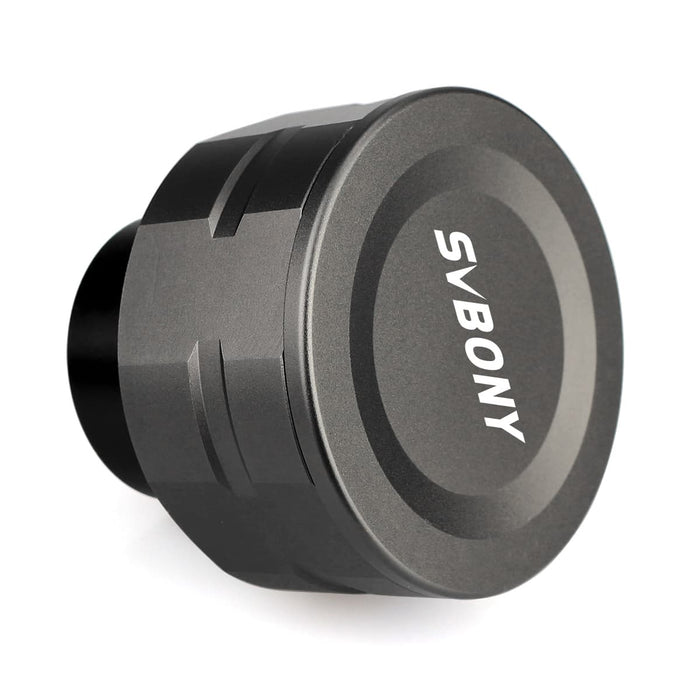

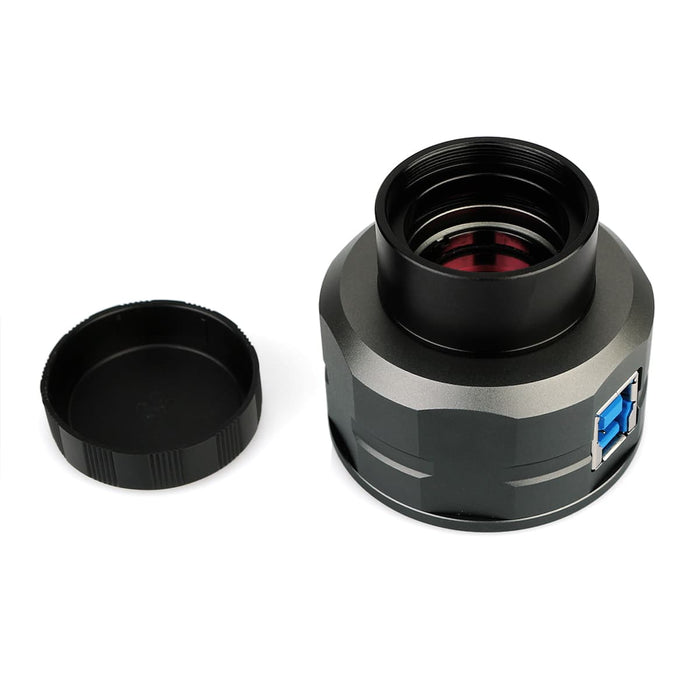

SVBONY SV205 8MP Electronic Camera IMX415

• High-Resolution Imaging

  Equipped with a SONY IMX415 CMOS sensor, the SV205 delivers high-quality, clear images, ideal for astronomy photography.

• Plug-and-Play

  Supports USB3.0 Type-B, and works without needing drivers, offering easy plug-and-play functionality for beginners.

• Dark Light Compensation

  The camera's dark light compensation technology enhances image clarity, especially in low-light conditions, for better celestial captures.

• Smooth Video Capture

  Records in MJPG video format with up to 30FPS at 2K resolution (1920x1080) for clear, smooth real-time video streaming.

• Versatile Telescope Compatibility

  Comes with a 1.25" machined aluminum adapter barrel, allowing for direct connection to almost any telescope for seamless integration.

•
  SV205 is a primary planetary camera, ideal for photographing the Moon, Jupiter, Saturn and binary stars.  It is also suitable for observing some bright deep space objects.

• 1/2.8”COMS Sensor

• The iteratived SV205 with IMX415 sensor, which is 8.29 Mega Pixels with a resolution 3840x 2160 under ideal conditions. In order to fixing the Pixel Vignetting color issue on the original version SV205 camera, we cut the new one out of some pixels, the parameter will be 7.05MP with 3264x2160, pixel size is adjusted to 1.45µmx1.45µm.

  This newly developed IMX415 stacked CMOS image sensor uses Sony's unique high-sensitivity, low-noise technology to reduce the pixel size to 1.45 square microns, approximately 80% smaller than the previous generation IMX274, creating a record-breaking 1/2.8-inch stacked 4K CMOS image sensor and with excellent low-light performance.

• Camera Interface

Notes

1. Computer configuration requirements:

•     The configuration of desktop computer is not less than Intel 4 generation i5, and the memory is not less than 4G.
• Laptop configuration is not less than Intel 6 generation i5, memory is not less than 8g.

2. The SV205 camera is best used with a refractor or reflector telescope.

It is not recommend for taking images through the eyepiece of a telescope. You may also require additional accessories and filters to get the best results. You need to buy an eyepiece projection adapter if would like to use the SV205 camera to capture images through telescope eyepiece.

3. The SV205 camera is indeed suitable for planetary photography.

If you are looking for visual observation, you would typically need a 1.25-inch eyepiece; however, we do not recommend using an eyepiece in front of the SV205 due to connection constraints. If you prefer not to use an eyepiece, you can view images directly through the camera by connecting the SV205 to your computer. Before doing this, please ensure you install software such as SharpCap. Once the software is open, you will be able to see the image on your computer and adjust the telescope's focus system for a clearer view.

Technical Specifications

In the box

• Camera

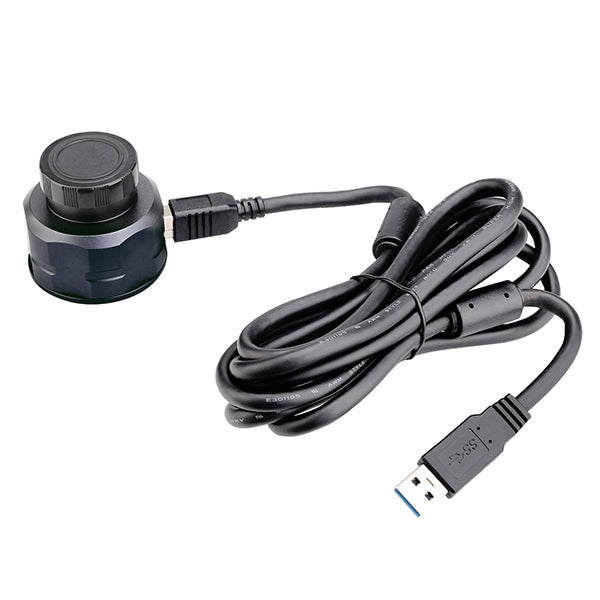

• USB Cable

Manual & Warranty

>Windows system with Sharpcap software for Windows

>Linux system and Raspberry Pi system with AstroDMx capture for Linux

> Android with USB Camera

Download 【USB Camera】 in your android APP Store

Notice: SV205 is not compatible with N.I.N.A

Pls don't connect to the Mac system for poor compatibility.
