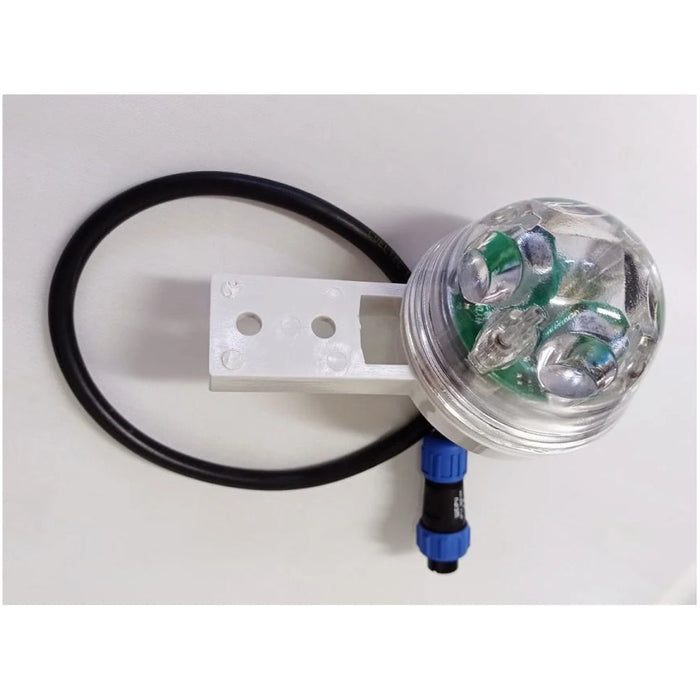

Lunatico Hydreon RG-9 Rain Sensor

Lunatico introduces the prestigious Hydreon RG-9 Rain sensor.

The Hydreon RG-9  Solid State Rain Sensor is a rainfall sensing device intended to detect and communicate when a pre-selected rain intensity has been reached or exceeded. The RG-9 is rugged, reliable, and maintenance-free.

The RG-9 uses beams of infrared light within a plastic lens about the size of a tennis ball. The round surface of the lens discourages the collection of debris, and the RG-9 has no moving parts to stick, and no water-pathways to clog. The device features an open-collector output that indicates when the selected rain intensity has been reached.

The sensitivity levels are:

• • • Rain Drops,
    • Very Light,
    • Medium,
    • Heavy.

The duration of the positive detection is also selectable:

• • • No Hold,
    • Hold Time 5 Minutes,
    • Hold Time 10 Minutes,
    • Hold Time 15 Minutes.

The power consumption of the RG-9 is very low, and the device is well-suited to solar-power applications.

In the CW with Hydreon rain sensor, the data from this sensor is available in all the software suite of the CW, Windows, OSX, Linux, and also by the SOLO CW.

Compatible with AAG CloudWatcher.

The RG-9 sensor does not indicate the amount of waterfall, just rain or dry – so the graphs will show only 2 levels (with an additional 3rd level in case of disconnection of the RG-9).

Technical Specifications

The sensitivity levels are:

• • • Rain Drops,
    • Very Light,
    • Medium,
    • Heavy.

The duration of the positive detection is also selectable:

• • • No Hold,
    • Hold Time 5 Minutes,
    • Hold Time 10 Minutes,
    • Hold Time 15 Minutes.

In the Box

-Lunatico Hydreon RG-9 Rain Sensor

Warranty & Manuals

AAG CloudWatcher documentation:

• User Manual
• Software download
• Read First
• Notes on CloudWatcher
