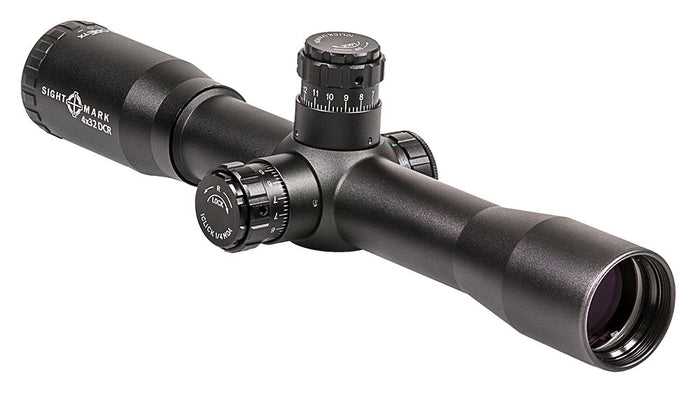

Core TX 4x32 Dual Caliber Rifle Scope
Description
Sightmark Core TX riflescopes use fully multi-coated optics to provide optimal light transmission in a variety of conditions. Etched glass reticles, in red or green, are illuminated to deliver optimal shot placement and are durable to withstand years of shooting. The Core TX riflescopes feature exposed, lockable turrets which help maintain a consistent zero. Turrets are quick and easy to adjust to compensate for bullet drop and windage on the fly. The Core TX 4x32DCR is housed in a durable 30mm tube, built from aircraft grade aluminum. This scope features a duplex BDC reticle and is calibrated for .223 and .308 ammo.
Included in Package
- Flip up lens covers
- 30mm scope rings
- CR2032 battery
Batteries Used
- Type: CR2032
- Quantity: 1
Product Downloads
- Product Manual(Online)
- Product Manual(PDF Download)
- Product Specifications
Features
- BDC reticle calibrated for .223 and .308 ammo
- Exposed, lockable turrets
- Red/Green illuminated reticle
- Single-piece, 30mm tube
- Aircraft grade aluminum
- Hard anodized finish
- Shockproof, fogproof, waterproof
- Fully multi-coated optics
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
| Reticle, Type | DCR- Dual Caliber Reticle |
|---|---|
| Reticle | etched glass |
| Reticle, Color | red and green |
| Reticle, Illuminated | Yes |
| Reticle Brightness Setting | 0-5 |
| Finish/Color | matte black |
| Magnification | 4 x |
| Diameter, Objective Lens | 32 mm |
| Diameter, Eyepiece | 1.65 / 42 in/mm |
| Diameter, Exit Pupil | 8 mm |
| Eye Relief | 4 / 101.6 in/mm |
| Field of View | 8.4 m@100m |
| Field of View | 8.4 m@100m |
| Diopter Adjustment | +2 to -2 + / - |
| Diameter, Tube | 30 / 1.18 mm / inch |
| Parallax Setting | 100 yds |
| MOA Adjustment | 1/4 MOA |
| Windage Adjustment | 80 MOA |
| Elevation Adjustment | 80 MOA |
| Windage & Elevation. adjustment range, mm | yes |
| Maximum Recoil | .416 Rem |
| Battery Type | CR2032 |
| Battery life, hours | 100 - 70 |
| Battery Voltage | 3 V |
| Sunshade | No |
| Nitrogen Filled | yes |
| Shockproof | yes |
| Fog Proof | yes |
| Focal Plane | 2nd |
| IP Standard | IP67 - waterproof and dustproof |
| Body Material | Aluminum |
| Material, Lens | glass |
| Lens Coating | Fully multi-coated |
| Operating Temperature | 0 to 120 / -17 to 49 °F / °C |
| Length | 11.26 / 286 in/mm |
| Width | 3.2 / 81 in/mm |
| Height | 2.5 / 63 in/mm |
| Weight | 18 oz |
